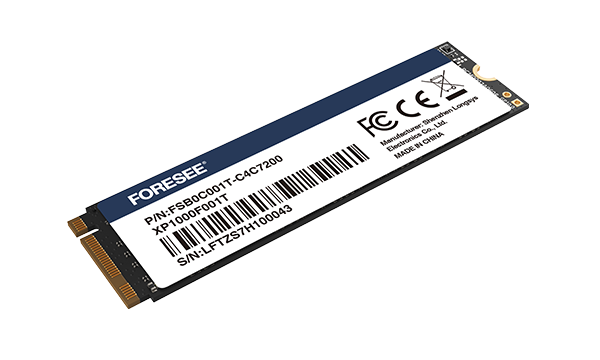

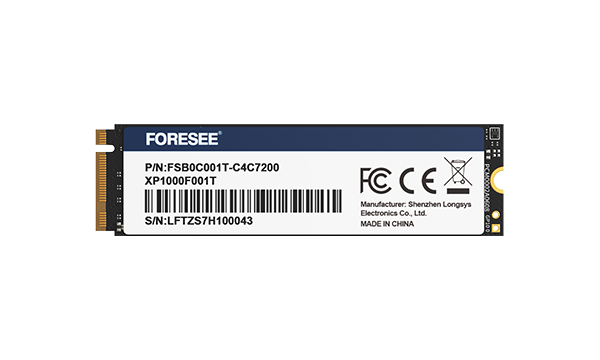

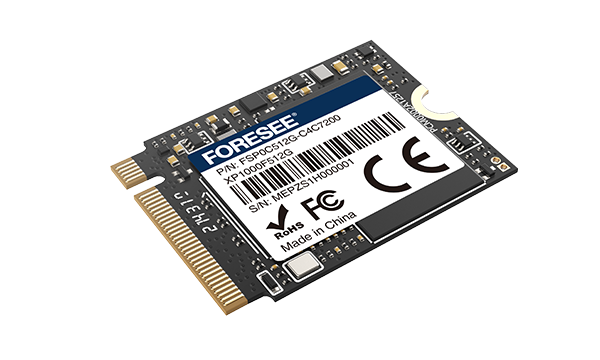

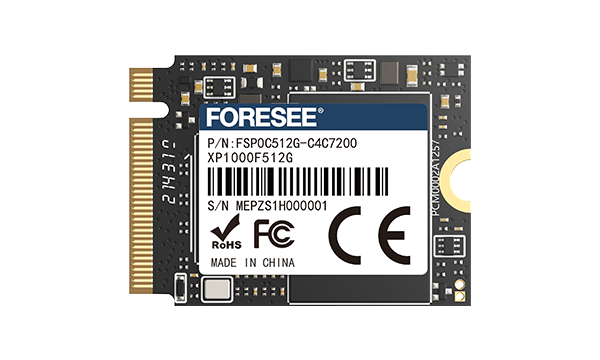

XP1000 PCIe SSD

Applicable to high-performance PC devices.

Product Advantages

Additional channels and higher Flash FPS bring about high speed performance.
L1.2 low power consumption to achieve lower power consumption and longer service life.
Temperature control algorithm to balance speed and temperature during operation.

Consult Now GO

back

Product Parameter

Product Series	Capacity	Type	Model	Flash Memory Medium	DRAM	Operating Temperature	Sequential Read/Write Speed*	Random Read/Write Speed (IOPS)*	Mean Time Between Failures (Hour)	Warranty
XP1000 PCIe SSD	128GB	M.2 2280	XP1000F128G	3D TLC	DRAM-less	0℃~70°C	Up to 1690MB/s / 940MB/s	Up to 70K / 180K	1500000	3 years
XP1000 PCIe SSD	256GB	M.2 2280	XP1000F256G	3D TLC	DRAM-less	0℃~70°C	Up to 3390MB/s / 1800MB/s	Up to 140K / 260K	1500000	3 years
XP1000 PCIe SSD	512GB	M.2 2280	XP1000F512G	3D TLC	DRAM-less	0℃~70°C	Up to 3400MB/s / 2980MB/s	Up to 260K / 270K	1500000	3 years
XP1000 PCIe SSD	1TB	M.2 2280	XP1000F001T	3D TLC	DRAM-less	0℃~70°C	Up to 3500MB/s / 3160MB/s	Up to 360K / 270K	1500000	3 years
XP1000 PCIe SSD	2TB	M.2 2280	XP1000F002T	3D TLC	DRAM-less	0℃~70°C	Up to 3500MB/s / 3160MB/s	Up to 360K / 270K	1500000	3 years
XP1000 PCIe SSD	128GB	M.2 2230	XP1000F128G	3D TLC	DRAM-less	0℃~70°C	Up to 1690MB/s / 950MB/s	Up to 70K / 180K	1500000	3 years
XP1000 PCIe SSD	256GB	M.2 2230	XP1000F256G	3D TLC	DRAM-less	0℃~70°C	Up to 3300MB/s / 1860MB/s	Up to 140K / 260K	1500000	3 years
XP1000 PCIe SSD	512GB	M.2 2230	XP1000F512G	3D TLC	DRAM-less	0℃~70°C	Up to 3470MB/s / 3000MB/s	Up to 270K / 260K	1500000	3 years

Supports TRIM Function and S.M.A.R.T Function.
*Data is sourced from internal testing of Longsys. The actual performance may vary between different devices.

Product Features

01
PCIe Gen3x4 standard
02
NVMe 1.4 specification
03
HMB technology support
04
M.2 2280 interface
05
128GB, 256GB, 512GB, 1TB, 2TB and additional capacity options
06
Sequential read/write speed up to 3500MB/s/ 3100MB/s and random read/write rate up to 360K /279K IOPS
