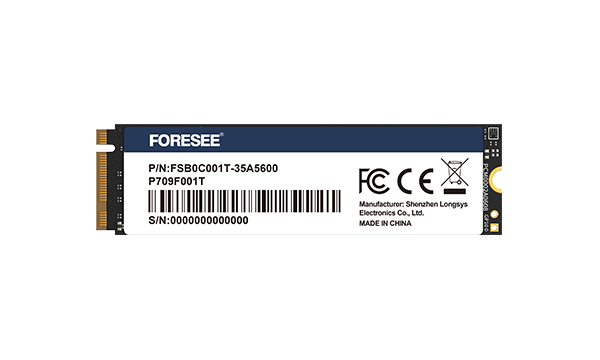

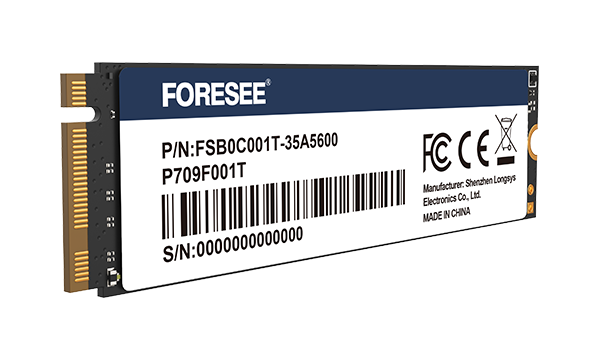

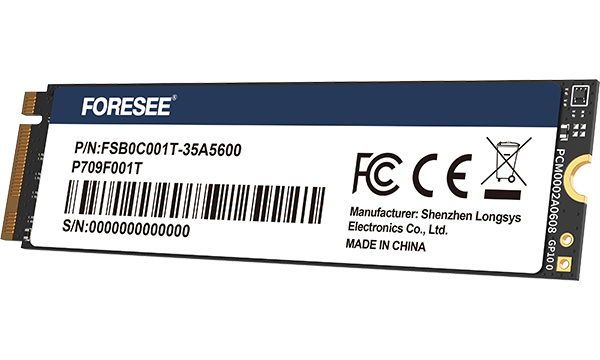

P709 PCIe SSD
P709 PCIe SSD

P709 PCIe SSD

Support two encryption functions, ensures data security and avoids data leakage
Product Advantages

Support the TCG-OPAL 2.0 and Pyrite 2.0 encryption functions, ensures data security and avoids data leakage.
L1.2 low power consumption to achieve lower power consumption and longer service life.
Temperature control algorithm to balance speed and temperature during operation.

Consult Now GO
Product Parameter
Product Series Capacity Model Flash Memory Medium DRAM Operating Temperature Sequential Read/Write Speed* Random Read/Write Speed (IOPS)* Mean Time Between Failures (Hour) Warranty
P709 TCG pyrite 2.0 PCIe SSD 128GB P709F128G 3D TLC DRAM-less 0℃~70°C Up to 1200MB/s / 450MB/s Up to 62K / 107K 1500000 3 years
P709 TCG pyrite 2.0 PCIe SSD 256GB P709F256G 3D TLC DRAM-less 0℃~70°C Up to 2400MB/s / 880MB/s Up to 124K / 209K 1500000 3 years
P709 TCG pyrite 2.0 PCIe SSD 512GB P709F512G 3D TLC DRAM-less 0℃~70°C Up to 2500MB/s / 1600MB/s Up to 234K / 277K 1500000 3 years
P709 TCG pyrite 2.0 PCIe SSD 1TB P709F001T 3D TLC DRAM-less 0℃~70°C Up to 2500MB/s / 1800MB/s Up to 258K / 311K 1500000 3 years
P709 AHG TCG OPAL PCIe SSD 128GB P709F128G 3D TLC DRAM-less 0℃~70°C Up to 1200MB/s / 440MB/s Up to 63K / 107K 1500000 3 years
P709 AHG TCG OPAL PCIe SSD 256GB P709F256G 3D TLC DRAM-less 0℃~70°C Up to 2000MB/s / 870MB/s Up to 124K / 208K 1500000 3 years
P709 AHG TCG OPAL PCIe SSD 512GB P709F512G 3D TLC DRAM-less 0℃~70°C Up to 2000MB/s / 1600MB/s Up to 234K / 266K 1500000 3 years
P709 AHG TCG OPAL PCIe SSD 1TB P709F001T 3D TLC DRAM-less 0℃~70°C Up to 2000MB/s / 1800MB/s Up to 253K / 292K 1500000 3 years
Supports TRIM Function and S.M.A.R.T Function.
*Data is sourced from internal testing of Longsys. The actual performance may vary between different devices.
Product Features
  • 01
    PCIe Gen3x4 standard

  • 02
    NVMe 1.4 specification

  • 03
    HMB technology support

  • 04
    M.2 2280 interface

  • 05
    128GB, 256GB, 512GB, 1TB, and additional capacity options

  • 06
    Sequential read/write speed up to 2500MB/s/ 2000MB/s and random read/write rate up to 130K /170K IOPS

Application

  • Laptop

  • All-in-one machine

  • Desktop

  • Home IPC
